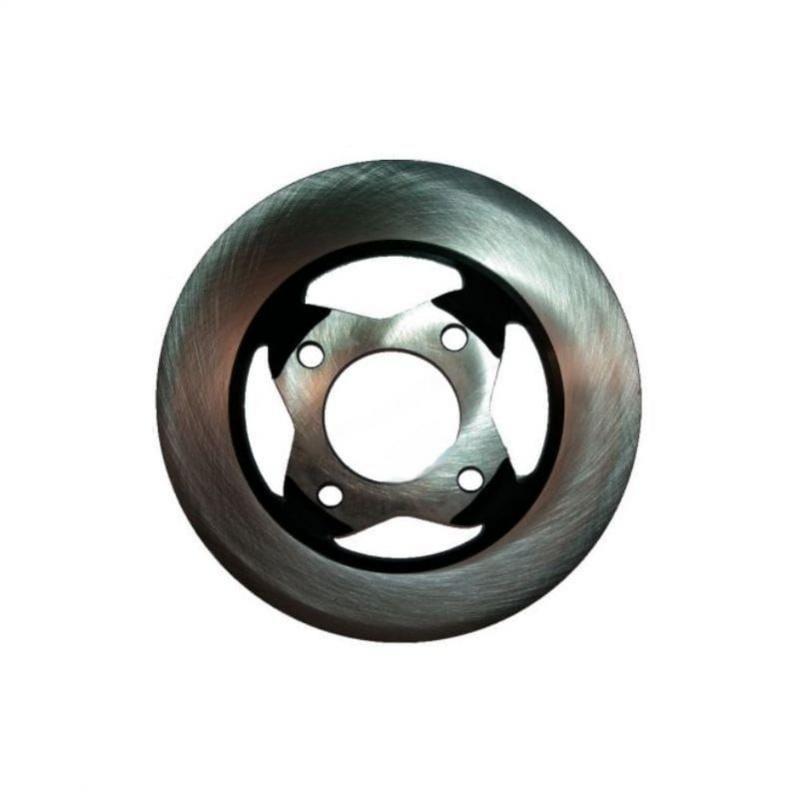

Is your brake disc worn, scored or warped? This front brake disc, part number 0117367, with a diameter of 225 mm, fits the Chatenet CH26 to CH46 (3rd fitting) microcar. It is sold individually.
Compatible models
- Chatenet CH26 moteur Yanmar: from the chassis number ending in 7852
- Chatenet CH28, CH30 and CH32 (3rd version)
- Chatenet CH40 and CH46
How to check compatibility?
Find your vehicle’s chassis number on the registration certificate (box E) and look up its first characters (for example VMSCH261) in the table of compatible models below. Also measure the diameter of your current disc: it must be 225 mm. Not sure? Send us a photo of your disc and your chassis number and we will check it for you.
Killing brake system.
See also: 2nd fitting disc 203031, 1st fitting disc 0122018.
Fitting tips
- Sold individually: always replace both discs on the same axle at the same time for balanced braking.
- Also replace the brake pads, and check the caliper and the brake hose.
- Clean the hub contact surface thoroughly before fitting and tighten the fixings to the specified torque.
- Bed in the brakes after fitting: avoid harsh braking for the first few miles.
